自動排水器的工作原理及安裝步驟

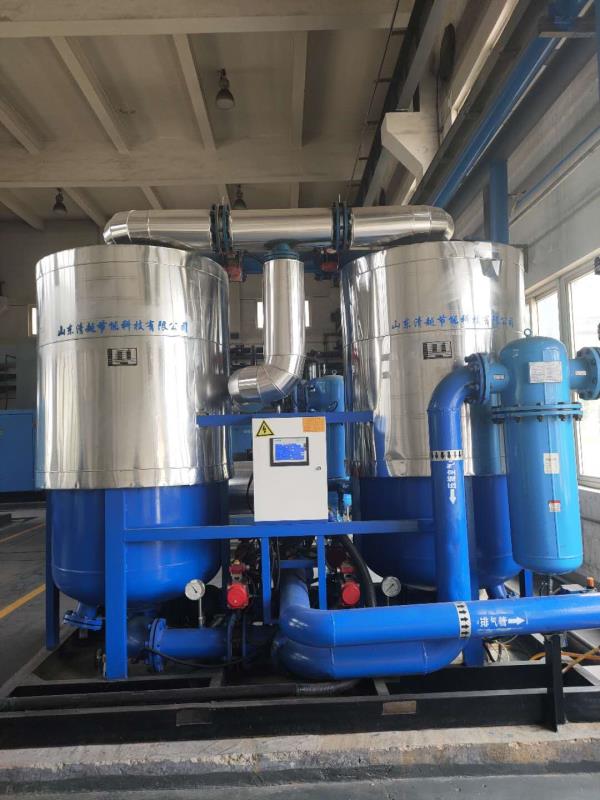

相信大家都見過自動排水器在我們生活周邊的應用，自動排水器用于自動排除管道低處、油水分離器、氣罐及各種過濾器底部等處的冷凝水?？砂惭b于不便進行人工排污水的地方，如高處、低處、狹窄處。并可避免人工排水被遺忘而造成壓縮空氣被冷凝水重新污染。接下來讓我們一起學習一下關于自動排水器的工作原理及安裝步驟。希望能夠幫助到有這方面需求的朋友們！

I believe everyone has seen the application of automatic drainer around our life. The automatic drainer is used to automatically drain the condensed water at the bottom of the pipeline, oil-water separator, air tank and the bottom of various filters. It can be installed in places where it is inconvenient to manually discharge sewage, such as high place, low place and narrow place. And it can avoid the artificial drainage being forgotten and causing the compressed air to be re polluted by condensate water. Next, let's learn about the working principle and installation steps of the automatic drainer. Hope to be able to help the friends who have this demand!

自動排水器用于自動排除管道低處、油水分離器、氣罐及各種過濾器底部等處的冷凝水?？砂惭b于不便進行人工排污水的地方，如高處、低處、狹窄處。并可避免人工排水被遺忘而造成壓縮空氣被冷凝水重新污染。

The automatic drainer is used to automatically drain the condensed water at the lower part of the pipeline, the oil-water separator, the air tank and the bottom of various filters. It can be installed in places where it is inconvenient to manually discharge sewage, such as high place, low place and narrow place. And it can avoid the artificial drainage being forgotten and causing the compressed air to be re polluted by condensate water.

自動排水器工作原理

Working principle of automatic drainer

自動排水器里面有一個空氣瓶<相當于一個氣球>，無水狀態、在氣壓作用下，空氣瓶堵住出水口。

There is an air bottle < equivalent to a balloon > in the automatic drainer. Under the action of air pressure and no water, the air bottle blocks the water outlet.

水在排水器里累積，達到一定水位之后，浮力大于空氣壓力，空氣瓶上浮，排水口打開，水在氣壓作用下排出，同時浮力減小，空氣瓶下降堵住排水口。

Water accumulates in the drainer. After reaching a certain water level, the buoyancy is greater than the air pressure. The air bottle floats and the drain opening is opened. The water is discharged under the action of air pressure. Meanwhile, the buoyancy decreases and the air bottle drops to block the drain.

電子的和物理的自動排水器

Electronic and physical automatic drainers

自動排水器有電子的和物理的，電子排水器的原理是：電磁閥控制閥門的開和關，可以通過設置上面的開關調節自動排水開啟的時間和周期。

The principle of the electronic drainer is: the solenoid valve controls the opening and closing of the valve, and the opening time and cycle of the automatic drainage can be adjusted by setting the switch above.

物理的排水器，就是靠排水器里的浮標的浮力來開啟排水器。排水器里的液面上升，浮標上升，閥門就自動開啟了

The physical drainer is to open the drainer by the buoyancy of the buoy in the drainer. When the liquid level in the drain rises, the buoy rises and the valve opens automatically

電子式自動排水器

Electronic automatic drainer

電子式自動排水閥以類比電路固態電子計時器與電磁閥相匹配，實現壓縮空氣系統冷凝水的定時自動排放。廣泛應用于篩檢程式、分離器、乾燥機、儲氣罐、滴水腳等壓縮空氣系統部件，排放時間與間隔時間可根據不同需要進行調節排放時間以及間隔時間。

The electronic automatic drain valve matches the analog circuit solid-state electronic timer with the solenoid valve to realize the timing automatic discharge of condensed water in the compressed air system. It is widely used in screening programs, separators, dryers, air storage tanks, drip feet and other compressed air system components. The discharge time and interval time can be adjusted according to different needs.

自動排水器安裝步驟

Installation steps of automatic drainer

一：在你開始安裝之前應該要做的事是把清潔壓縮空氣系統里打掃干凈，這一步做好了對于我們后面的安裝有很大的幫助。

1： Before you start the installation, you should do is to clean the compressed air system. This step is very helpful for our later installation.

二：在你安裝的時候應該注意機器上閥體上面箭頭的具體指向，還有出水口千萬不要用不抗氣流沖擊的軟管來連接，不讓你當你安裝完成開始使用一段時間以后你就會(huì )發現你的水排不出去了，此時應該就是這個軟管脫離了。

2： When you install, you should pay attention to the specific direction of the arrow on the valve body of the machine, as well as the water outlet. Do not use the hose that is not resistant to air impact to connect. When you install and start to use for a period of time, you will find that your water can not be drained out. At this time, it should be that the hose is detached.

三：注意你接入自動排水器的電壓大小應該與自動排水器上的額定電壓一樣，大概也行，但是不能太低也不能高于，最多就是小于等于了。而且如果你使用直流電的話，那你接入的正極必須得與自動排水器上的接頭“1”連接。

3： Note that the voltage you connect to the automatic drainer should be the same as the rated voltage on the automatic drainer. It may be OK, but it can't be too low or higher. At most, it's less than or equal to. And if you use direct current, the positive pole you connect to must be connected to the connector "1" on the automatic drainer.

四：如果是出廠的時候就已經接好的排水閥門的話，那我們我們就應該要明白的是此時自動排水器上的褐色導線為火線L，藍色導線為零線N，黃綠雙色的是需要我們完成安裝后連接的地線GND。

4： If it is a drain valve that has been connected when leaving the factory, we should understand that the brown wire on the automatic drainer is the live wire L, the blue wire is the zero wire n, and the yellow and green color is the GND ground wire that needs to be connected after the installation.

五：為了避免接線盒上的長螺釘進水燒毀，我們必須得把長螺釘好好擰緊。這里給點自動排水器安裝小提示，安裝前電源必須為斷開狀態，還有就是壓縮空氣得保證完全排空即此時自動排水器中屬于零壓力狀態下。

5： In order to prevent the long screw on the junction box from being burned by water, we must tighten the long screw properly. Here are some tips for the installation of the automatic drainer. Before installation, the power supply must be disconnected, and the compressed air must be completely drained, that is, the automatic drainer belongs to zero pressure state at this time.

其實它的安裝方法并不是特別難，主要在于安裝之前了解關于安裝它的一些常識就好，知道了這些小常識后我相信自動排水器的安裝已不再是那么的難了，不過鑒于安全以及使用壽命的問題，我個人還是比較覺得找個專業的師傅或者自動排水器安裝公司來給你全程安裝處理要好一點，這樣不僅安全問題得到了解決，重要的是有了安裝售后服務的我們以后再也不用擔心哪天自動排水器突然不排水了或者哪兒斷了出問題了，如果出問題直接給他們安裝的人員打電話，說清楚問題后我們的問題就會(huì )有人來解決了，這樣對于忙碌的人群來說可以省下不少的事呢!

In fact, its installation method is not particularly difficult. The main thing is to know some common sense about installing it before installation. After knowing these little common sense, I believe that the installation of automatic drainage device is no longer so difficult. However, in view of the safety and service life, I personally feel that it is better to find a professional master or automatic drainer installation company to give you the whole process Installation and handling should be better, so that not only the safety problems have been solved, but also the important thing is that with the installation and after-sales service, we don't have to worry about the day when the automatic drainer suddenly fails to drain or where it breaks down. If there is a problem, call their installation personnel directly and explain the problem clearly, then our problem will be solved by someone, so that the busy people will be able to solve it People can save a lot of things!
